Mechanical ventilation remains a cornerstone of critical care, and as respiratory therapists, mastering the nuances of different ventilator modes is essential for optimizing patient outcomes. Adaptive Support Ventilation (ASV) stands out as a highly sophisticated, closed-loop mode of ventilation designed to simplify ventilator management while delivering safe, individualized care.
Whether you are a seasoned therapist or newly credentialed, understanding ASV is critical to advancing your clinical practice. This guide provides a comprehensive overview of Adaptive Support Ventilation, exploring its core principles, clinical benefits, and practical applications in the intensive care unit.
Adaptive Support Ventilation (ASV) is a microprocessor-controlled, closed-loop mode of mechanical ventilation. Unlike conventional ventilator modes that require manual adjustment of multiple parameters, ASV automatically adapts to the patient's changing lung mechanics and breathing effort.
Developed with the goal of reducing the complexity of mechanical ventilation, ASV aims to guide the patient safely from intubation to extubation. The system continuously calculates the optimal respiratory rate and tidal volume combination to minimize the work of breathing and avoid the risks of volutrauma, barotrauma, and auto-PEEP. By integrating advanced algorithms, ASV serves as both a primary support mode and a weaning tool, seamlessly transitioning between mandatory breaths and spontaneous breathing support.
To fully appreciate how ASV functions, respiratory therapists must understand the underlying algorithms and physiological principles that drive this technology.
ASV operates on the principle established by Otis, which suggests that humans naturally adopt a breathing pattern (a specific combination of tidal volume and respiratory rate) that minimizes the muscular work of breathing. The ASV algorithm continuously measures the patient's lung mechanics—specifically airway resistance and lung compliance—and applies the Otis equation to calculate the optimal breathing pattern.

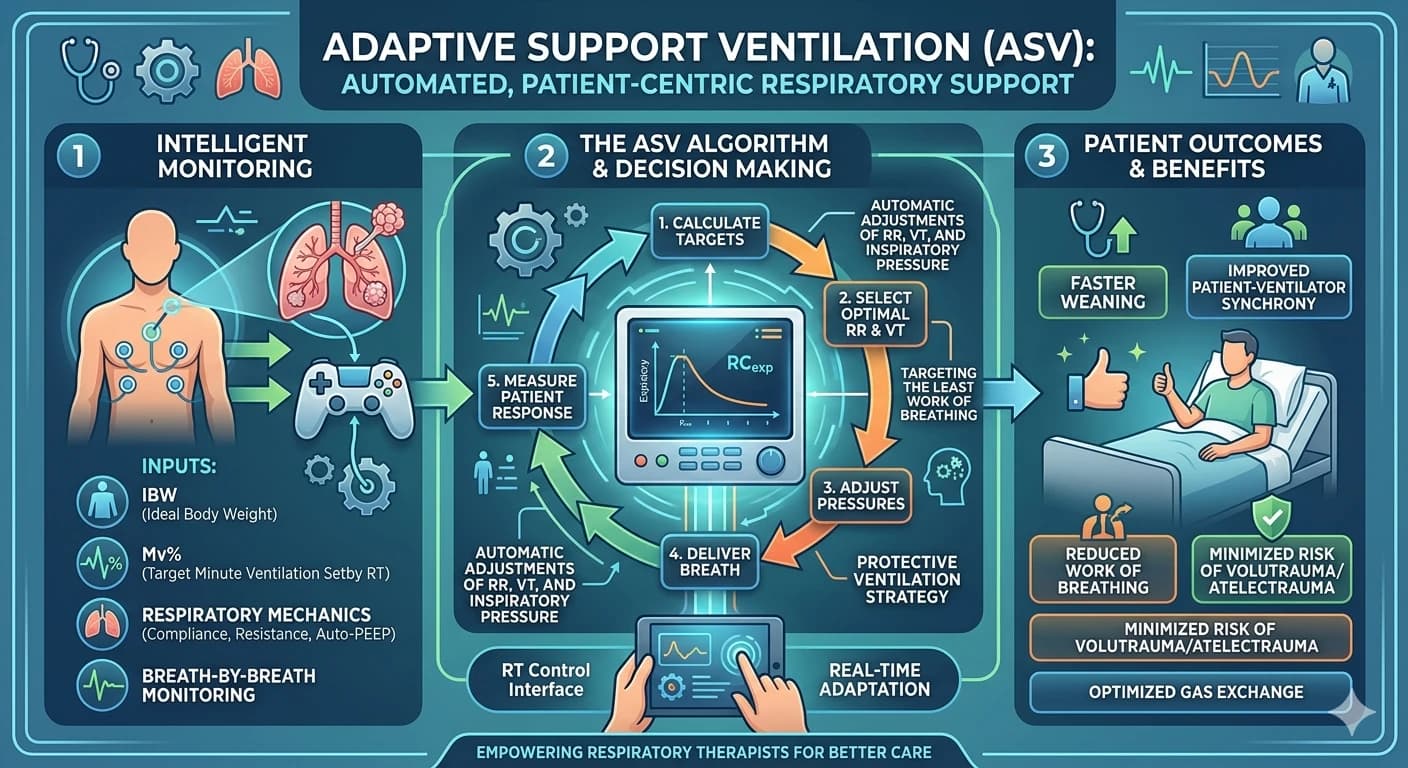

The ventilator evaluates the patient's respiratory mechanics and spontaneous breathing effort on a breath-by-breath basis. Based on these continuous measurements, ASV adjusts the inspiratory pressure and mandatory rate to achieve a target minute ventilation. If the patient begins to breathe spontaneously, the ventilator decreases its mandatory support, allowing the patient to take on more of the work of breathing. Conversely, if the patient's respiratory drive diminishes, the ventilator automatically increases support to ensure the target minute ventilation is maintained.
When initiating ASV, the respiratory therapist sets the patient's ideal body weight (IBW) and a target minute ventilation percentage (typically starting at 100% for normal metabolic demand). The ventilator then calculates the absolute target minute ventilation (e.g., 100 ml/kg/min for adults). The therapist also sets the maximum pressure limit and PEEP/FiO2. The ASV algorithm takes over from there, constantly analyzing patient data to deliver the prescribed minute volume safely.
Understanding the distinction between ASV and conventional ventilator modes is crucial for respiratory therapists transitioning to this advanced technology.
In Volume Control Ventilation, the therapist sets a fixed tidal volume and respiratory rate. While this guarantees a specific minute ventilation, it does not adapt to changes in patient compliance or resistance, potentially leading to high airway pressures and patient-ventilator asynchrony. ASV, on the other hand, dynamically adjusts the tidal volume and pressure based on real-time lung mechanics, providing lung-protective ventilation and improving patient comfort.
Pressure Support Ventilation requires the patient to have an intact respiratory drive. It provides a set amount of inspiratory pressure for spontaneous breaths but does not guarantee a minimum minute ventilation. ASV acts as a bridge, functioning like PSV when the patient is breathing spontaneously but automatically reverting to pressure-controlled mandatory breaths if the patient experiences apnea or a decrease in respiratory drive.
Implementing Adaptive Support Ventilation offers numerous advantages for both the patient and the healthcare team.
By continuously monitoring lung mechanics and adapting to changes, ASV actively prevents hazardous breathing patterns. The algorithm avoids shallow, rapid breathing that leads to dead-space ventilation, as well as excessively large tidal volumes that risk volutrauma. Furthermore, ASV monitors expiratory time constants to prevent the development of auto-PEEP, making it particularly beneficial for patients with obstructive airway diseases like COPD or asthma.
One of the most significant advantages of ASV is its inherent ability to facilitate weaning. As the patient's condition improves and spontaneous respiratory effort increases, ASV automatically reduces the level of ventilator support. This continuous, automated weaning process can lead to shorter durations of mechanical ventilation, reducing the risk of ventilator-associated pneumonia (VAP) and ICU-acquired weakness.
Managing multiple ventilator modes and making frequent manual adjustments can be time-consuming and prone to human error. ASV simplifies ventilator management by requiring only a few initial settings. This allows respiratory therapists to focus on broader aspects of patient care, comprehensive assessment, and interdisciplinary collaboration.
